8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling
8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling

8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling

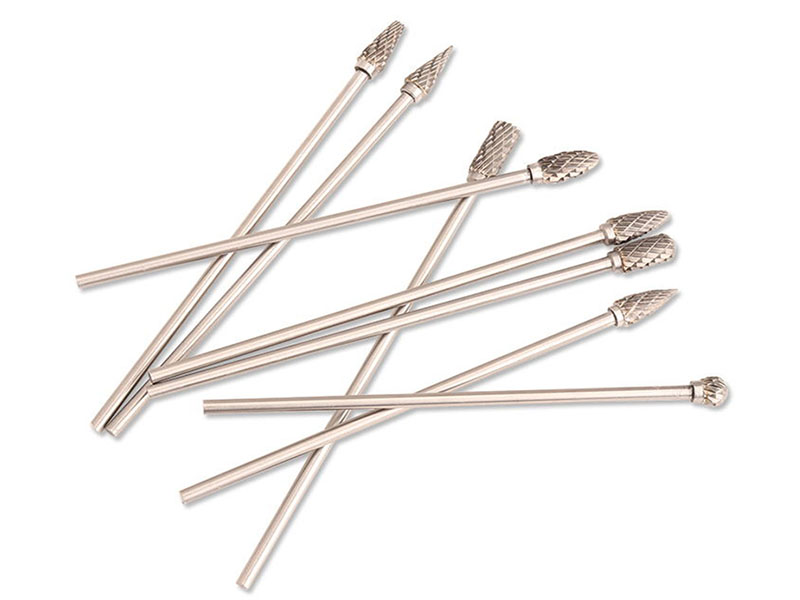

various shape  long shank Tungsten Carbide Burr various Shape Double Cut Rotary Burrs File 8pcs set

About the carbide burr: Using Carbide Rotary Burrs is a effectiveway to realize mechanization in hand work operations. Carbide burrs are widely used in the aerospace, automotive, stone and metal sculpting, and metalsmith industries to name but a few. In the industries of airplane, shipbuilding, automobile, machinery, chemistry etc. Carbide Rotary Burrs can be widely used in machining iron, steel casting, carbon steel, alloy steel,stainless steel, hardened steel, copper aluminum etc.

8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling

8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling

Inquire NowNext Product

How to use the carbide burr
1.Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
1.6mm or 1/16"          25,000 - 35,000
2.35mm or 3/32"       17,000 - 26,000
3mm or 1/8"                17,000 - 26,000
6mm or 1/4"                11,000 - 16,500
12mm or 1/2"              8,000 - 12,000
16mm or 5/8"              7,650 - 11,500
2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.

Advantage of our carbide burrs

100% quality and brand new.
Can Process a variety of metal and non-metal, processing hardness would up to HRC70.
In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
High product processing quality, high finish, can process out a various of high-precision mold cavity.
Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.

8pcs Double Cut Solid Carbide Rotary Burr File Set for Die Grinder, Metal Carving, Polishing, Engraving, Drilling
